NEW MODELS –TOYOSK PRECISION SMALL MACHINING CENTER

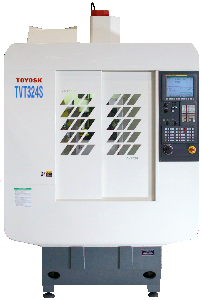

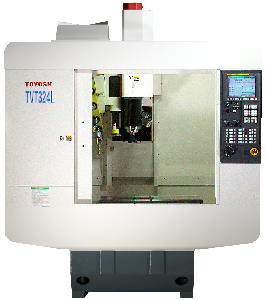

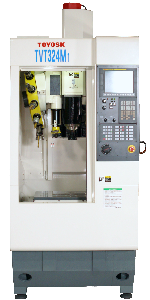

TVT324M1, TVT324S and TVT324L |
| It aims at a highly effective processing further more. |
|
|
| |
| Machine specification |
| Item |
|
TVT324M1 |
TVT324S |
TVT324L/TVT324F(Option) |
| Travel |
X axis |
300mm |
500mm |
700mm |
| Y axis |
400mm |
400mm |
400mm |
| Z axis |
300mm |
300mm |
300mm |
| Table |
Table size |
620mm×400mm |
650mm×400mm |
850mm×400mm |
| Max.Table load capacity |
300kg |
300kg |
300kg |
| Table T groove |
14mm T |
14mm T |
14mm T |
| Spindle |
Taper |
7/24 No.30 |
7/24 No.30 |
7/24 No.30 |
| Speed |
100～12000min-1 |
100～12000min-1 |
100～12000min-1 |
| Motor |
7.5/11/15kw |
7.5/11/15kW |
7.5/11/15kW |
| ATC |
Tool storage capacity |
14 |
14(16/24) |
14(16/24) |
| Feed Speed |
Rapid feed speed |
50m/min |
50m/min |
50m/min |
| Machine size |
Required floor space |
1000×2315mm |
1590×2240mm |
2040×2240mm |
| Machine height |
2460mm |
2460mm |
2460mm |
| Machine mass |
2550kg |
2600kg |
2750 kg/2900 kg |
|
| ※ The contents of this website are subject to change without prior notification
due to improvements to the machine. |
